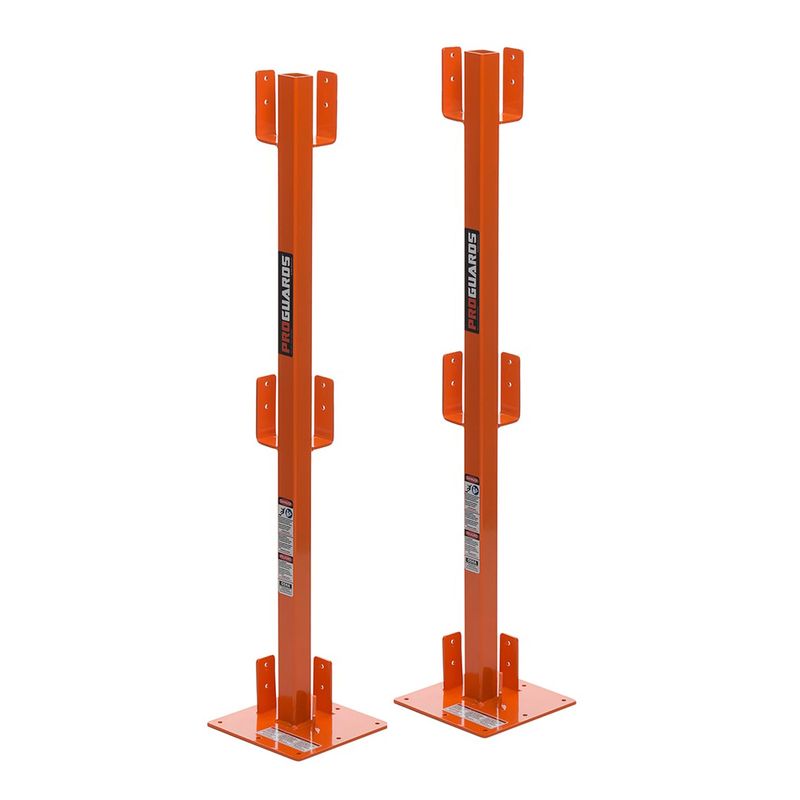

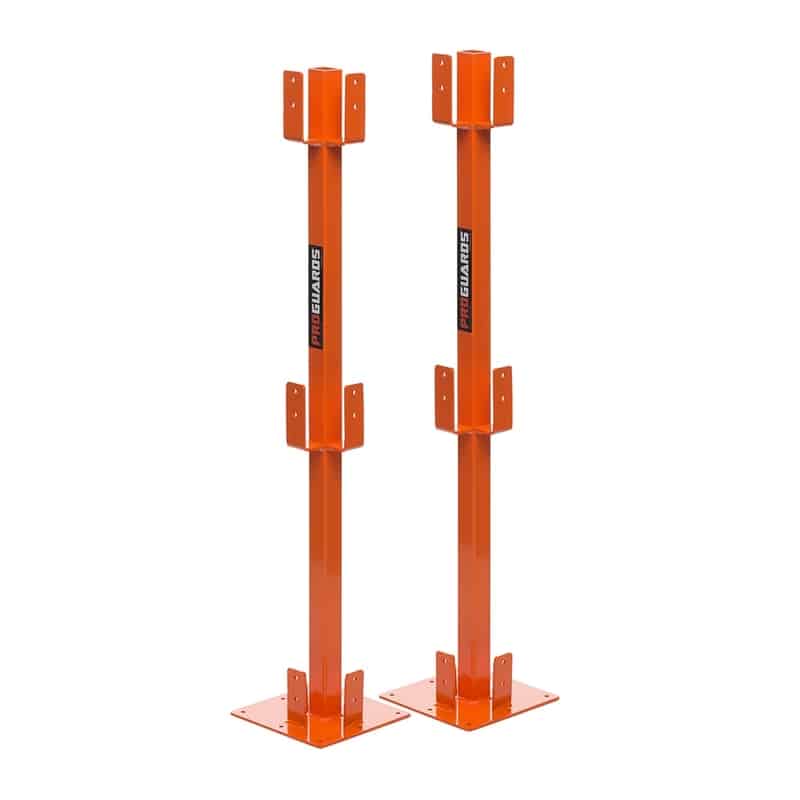

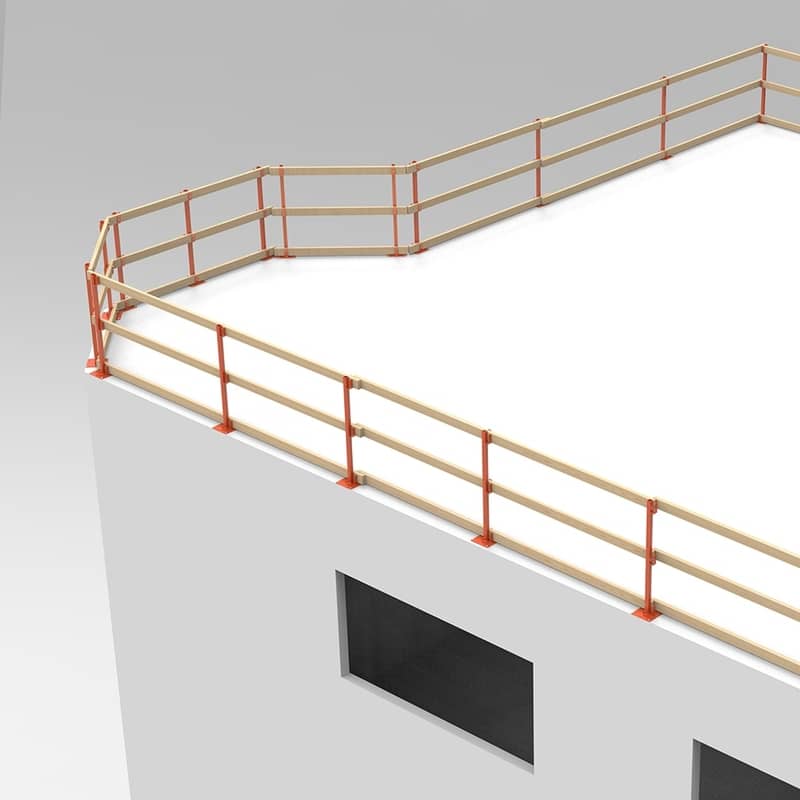

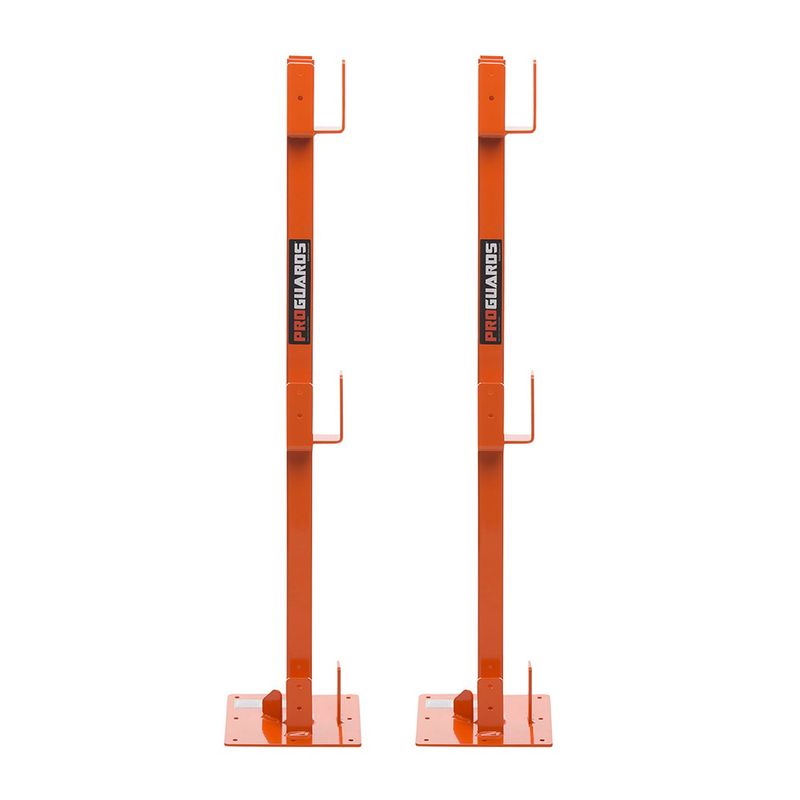

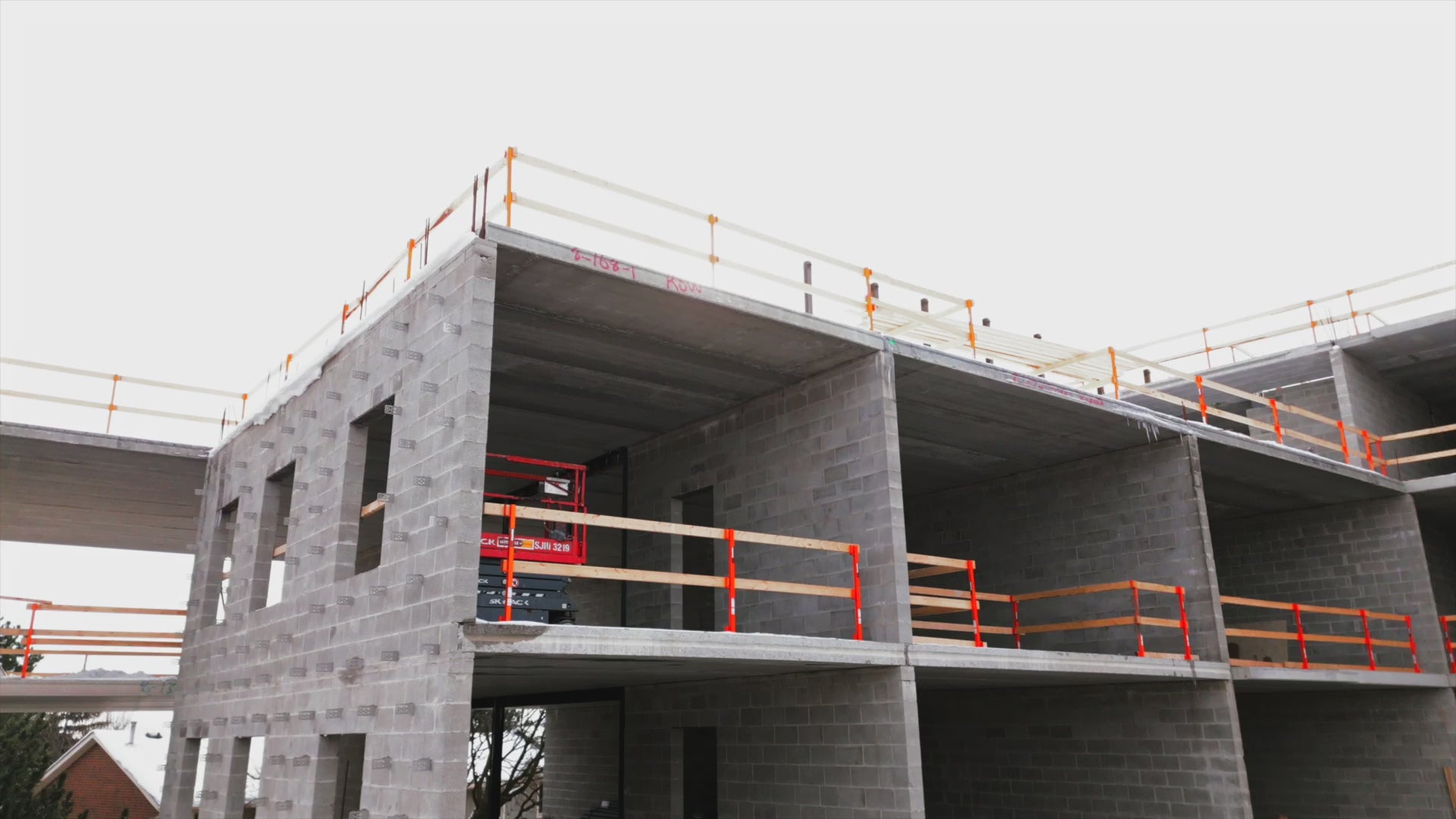

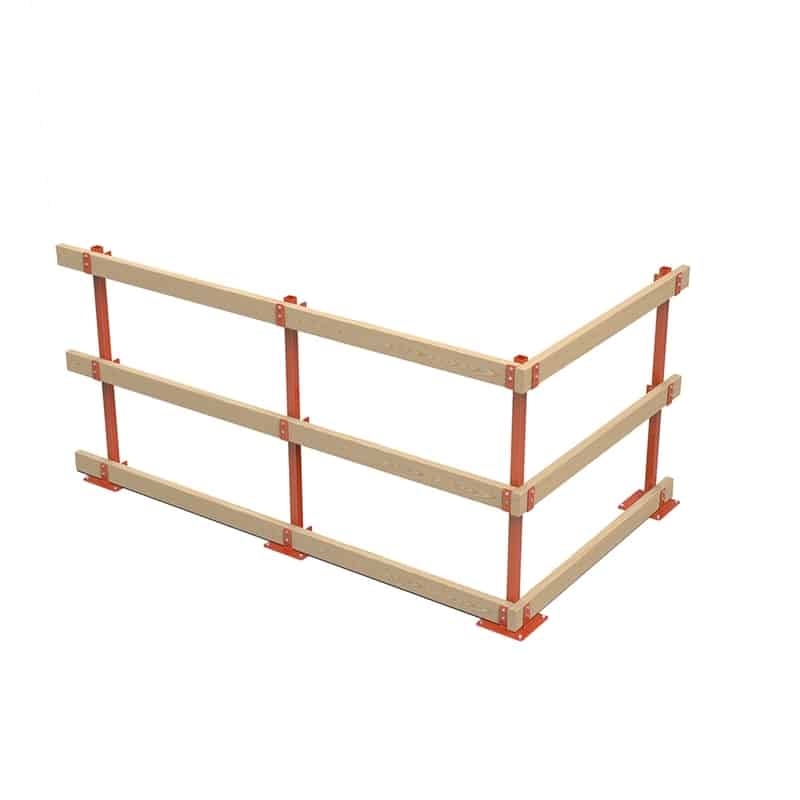

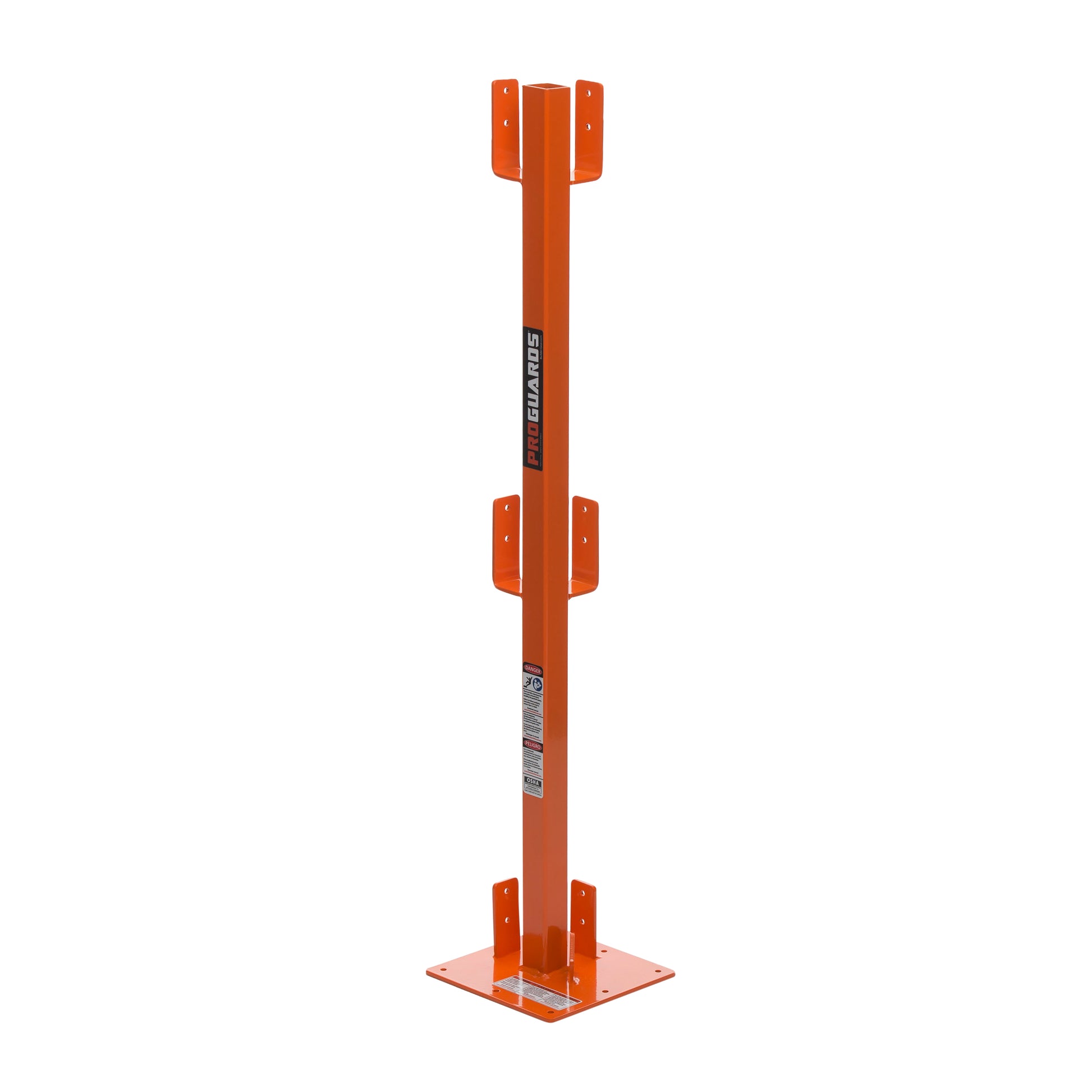

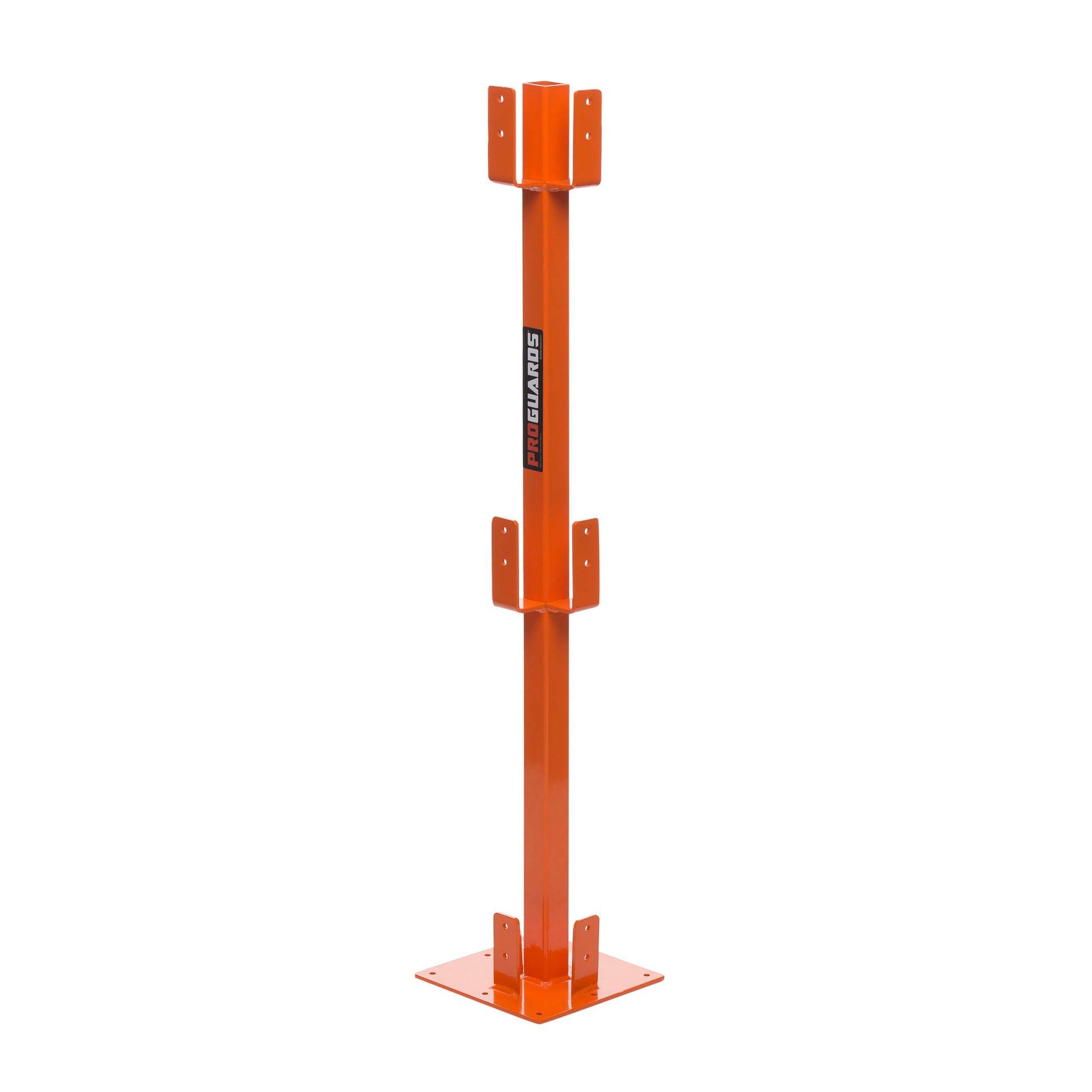

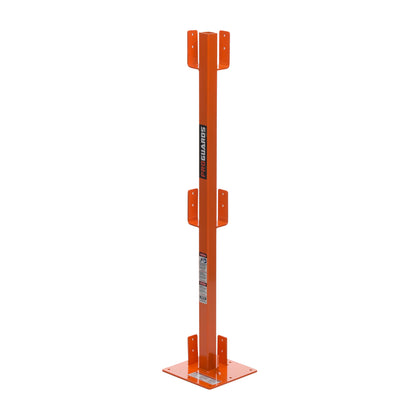

ProGuards Temporary Guardrail System allows you to quickly and easily create fully compliant guardrails that provide the required fall protection from the unsafe areas of the job site. With several application and configuration options, ProGuards can solve almost any temporary guardrail need.

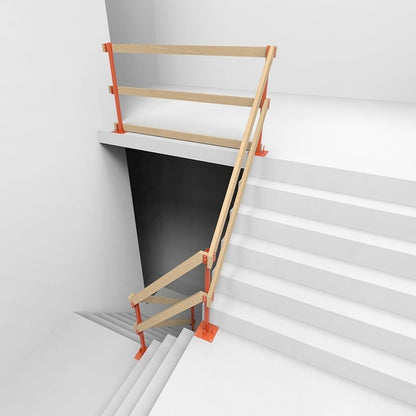

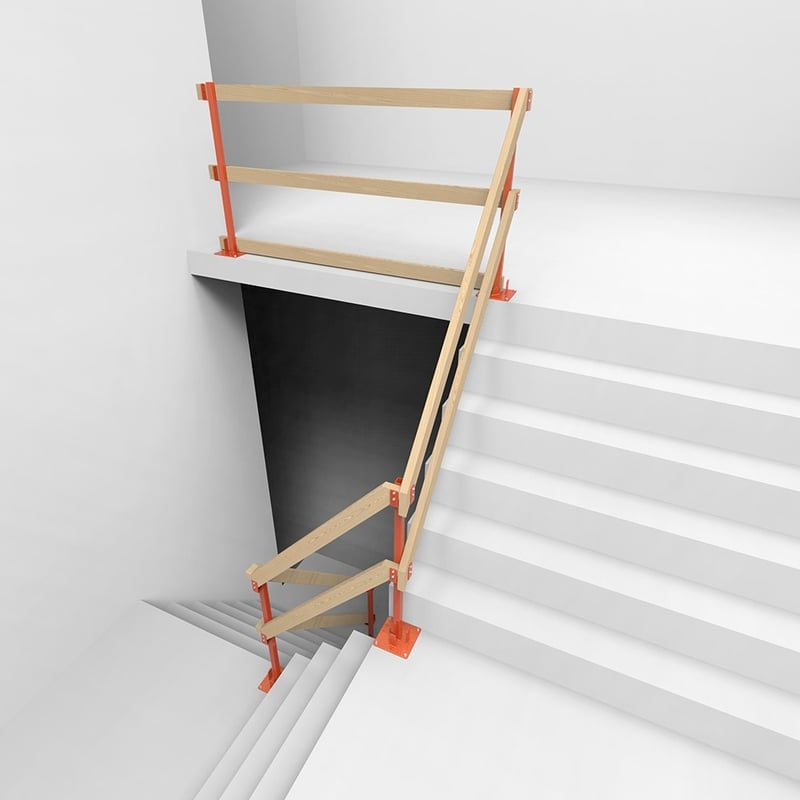

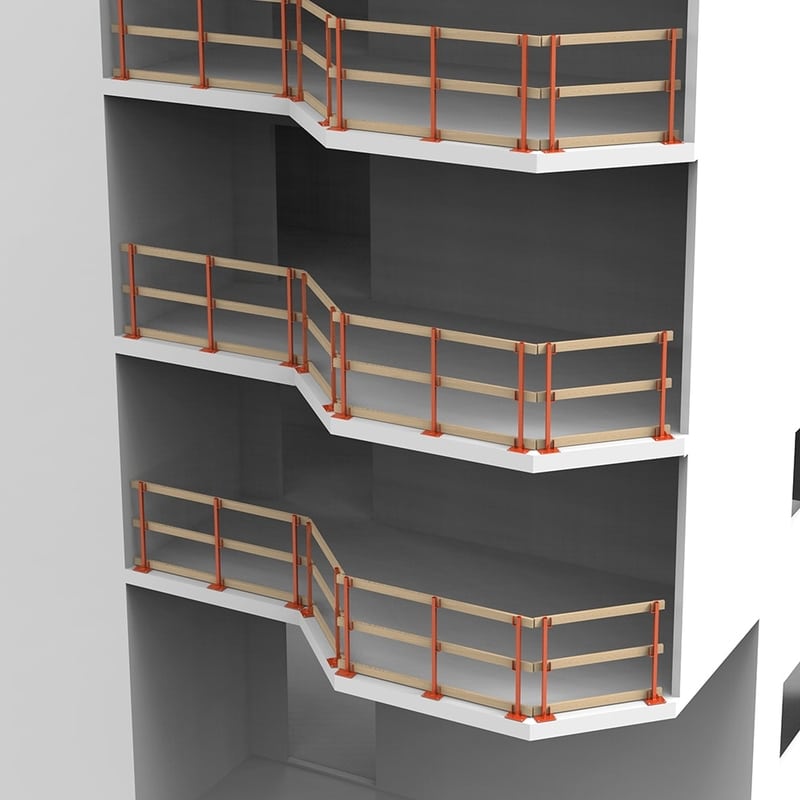

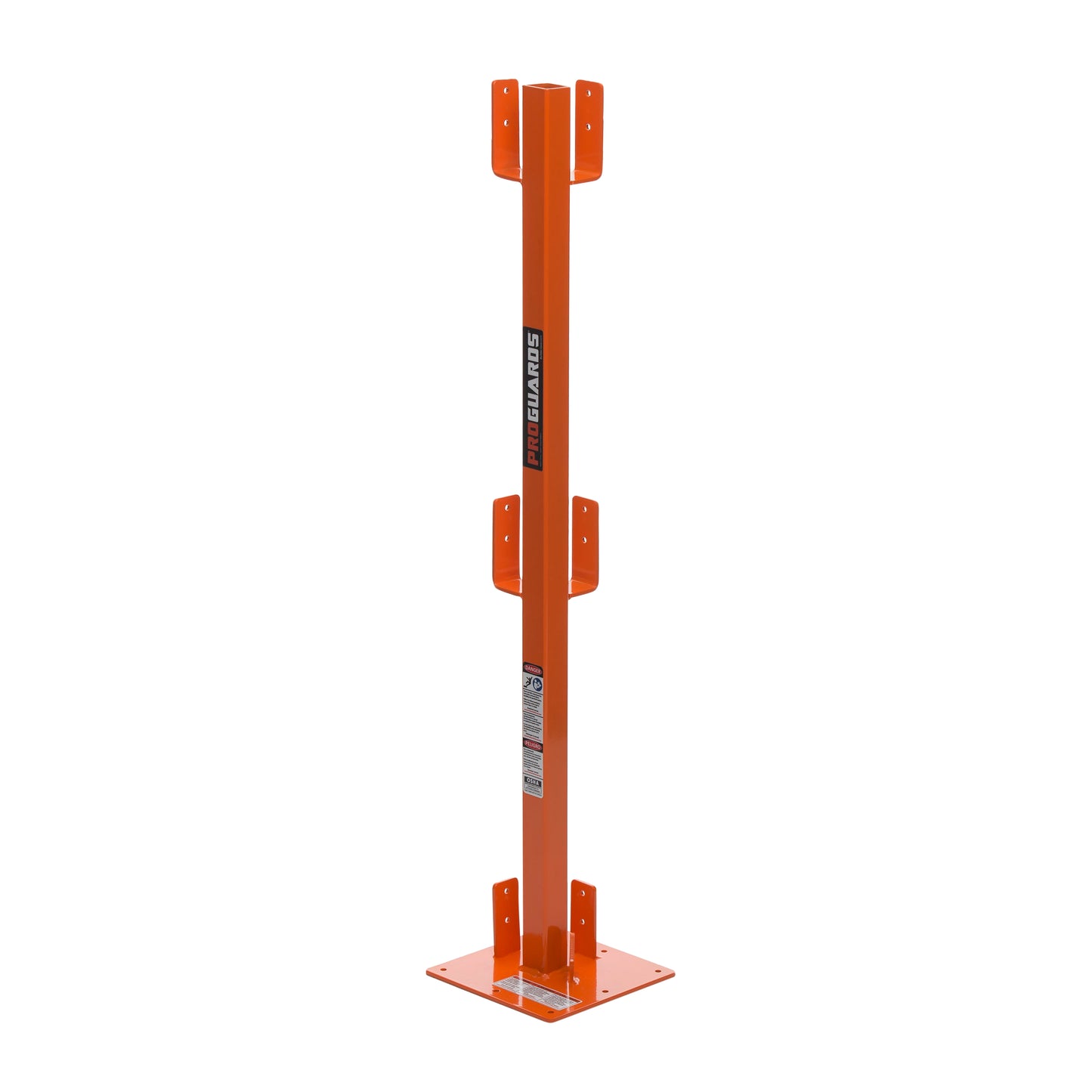

• Dual hooks allow for 90° installs and angled stair rails and handrails
• Top, mid and toe rail height and strength comply with applicable OSHA (USA) and OH&S Act (Canada) requirements
• Hook Height: 3.5" (89mm)
• Hook Depth: 1.5" (38mm)
• Made of durable powder coated steel
• Holes fit 1.5" (38mm) #8-14 wood or lag screws
• Base fastens to OSB, plywood, 2x lumber and concrete substrates

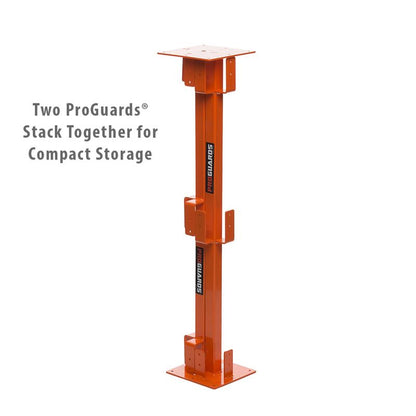

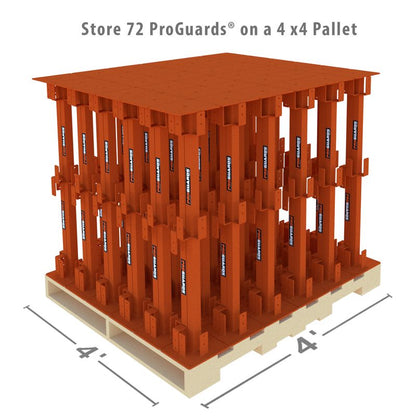

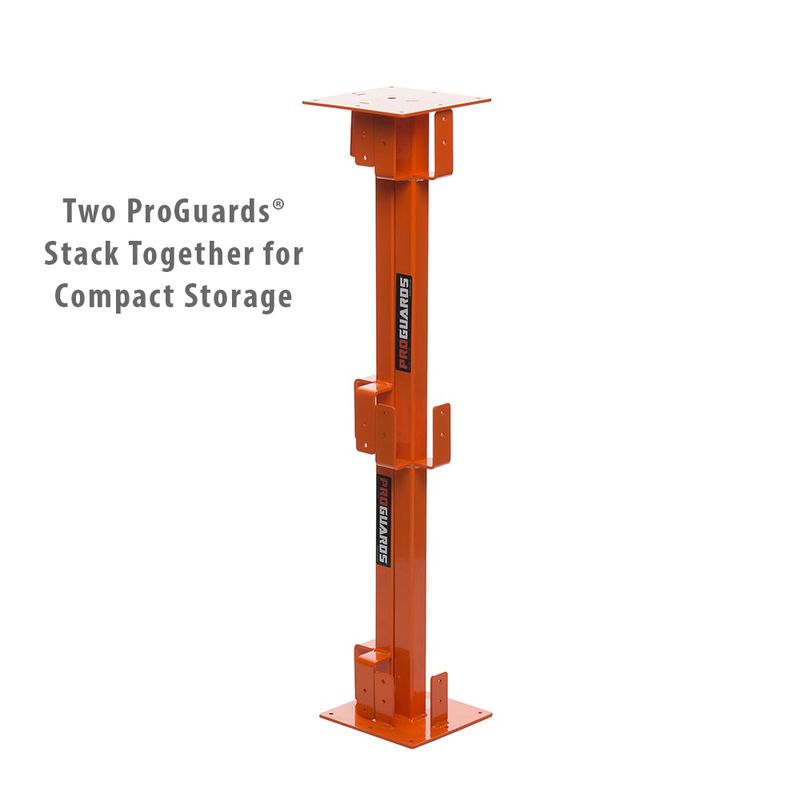

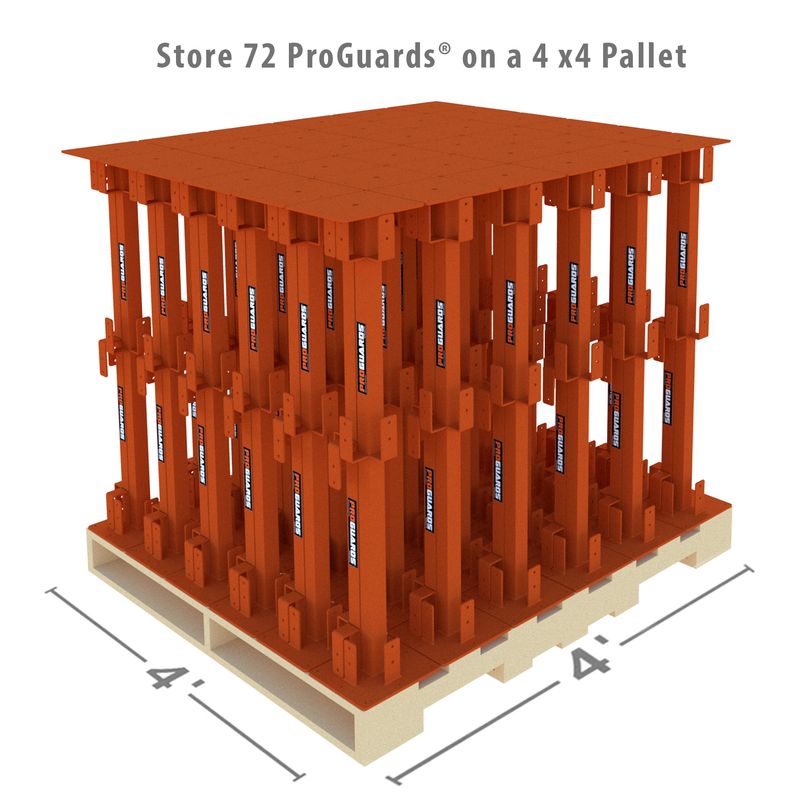

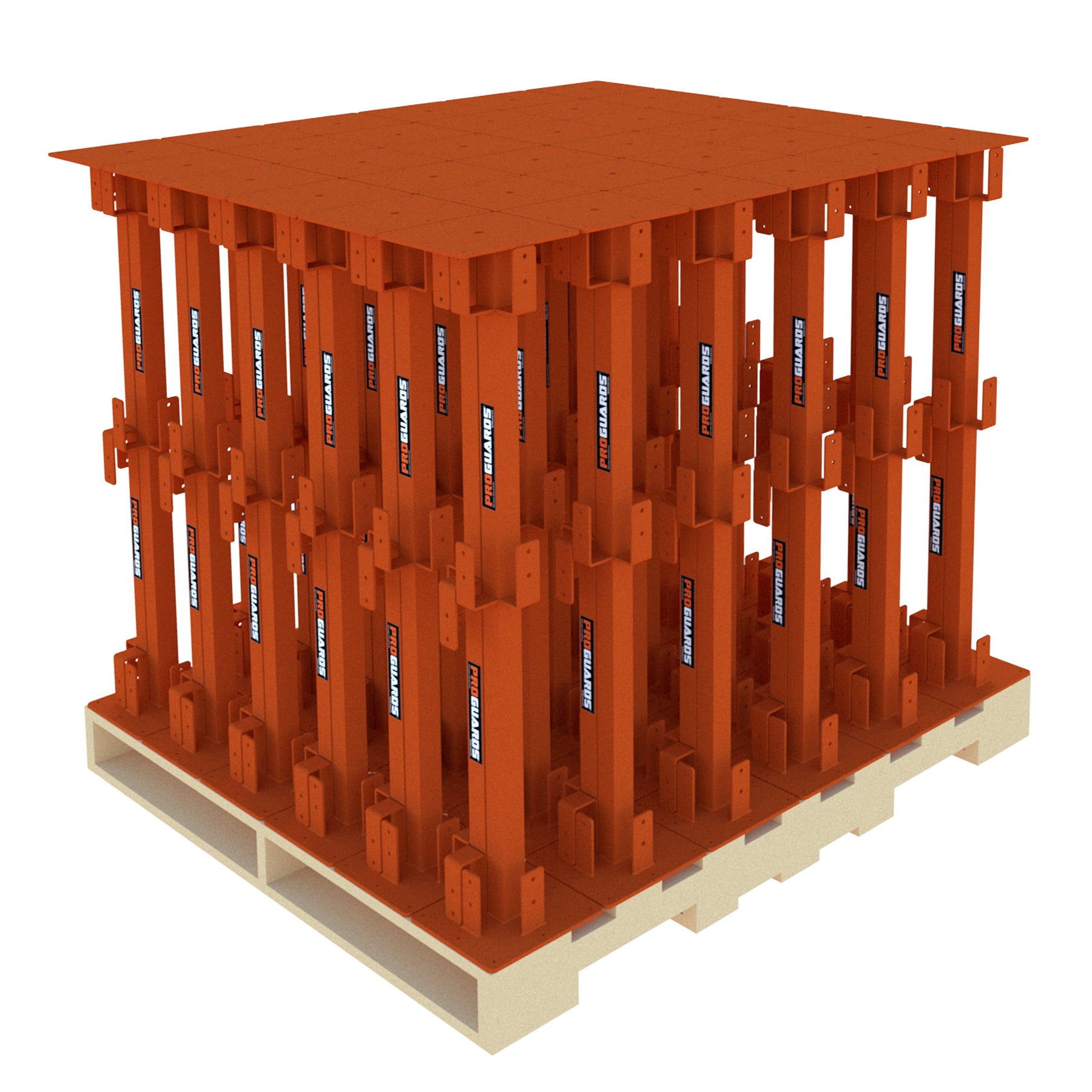

• Two posts sleeve together for compact storage and transport

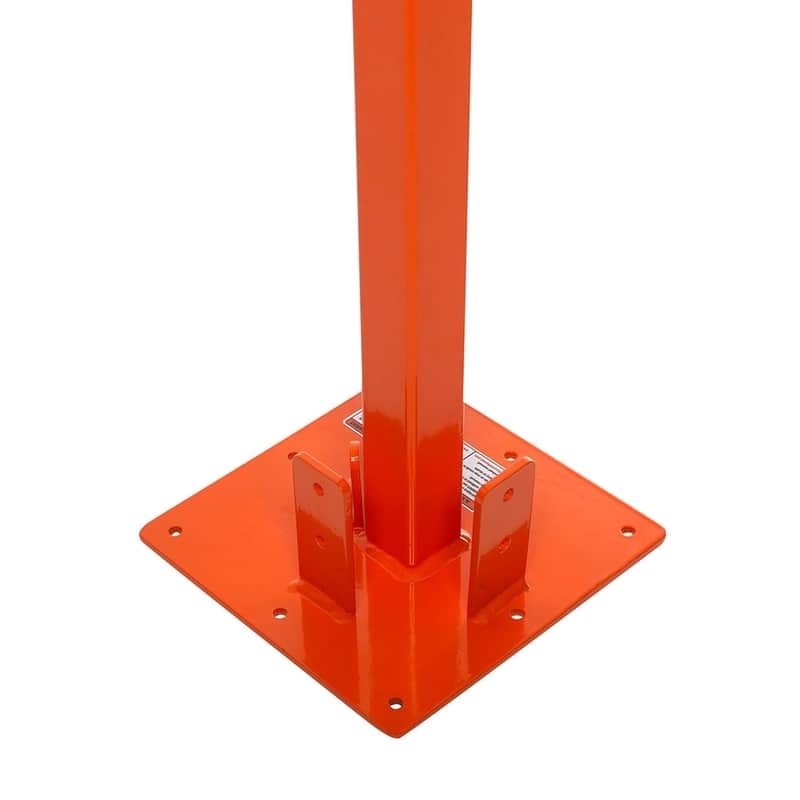

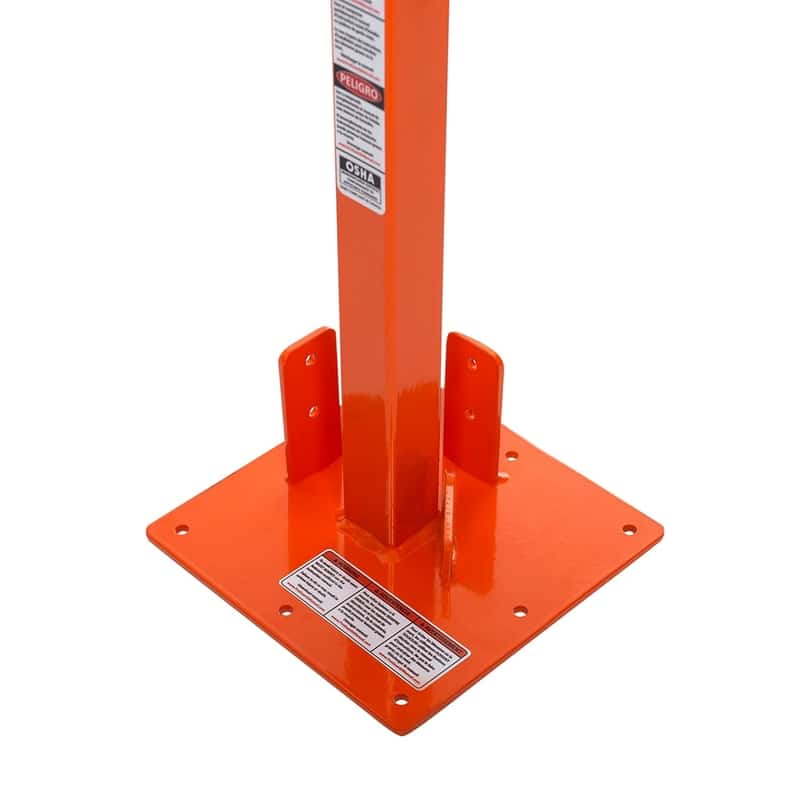

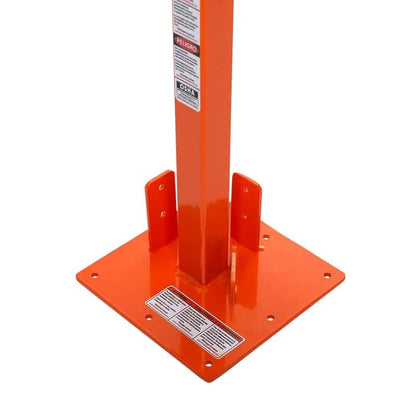

• 8" (203mm) wide base with 8 screw holes for a variety of fastening configurations
• 39" (991mm) post height. YES this height is compliant. OSHA requires temporary guardrails be a height of 42" +/- 3" which is a range of 39" to 45". Canada regulations are also a height range that varies by province but 39" fits within the required ranges. This height was chosen to allow ProGuards to also comply with OSHA stair rail height requirements for angled stair applications.

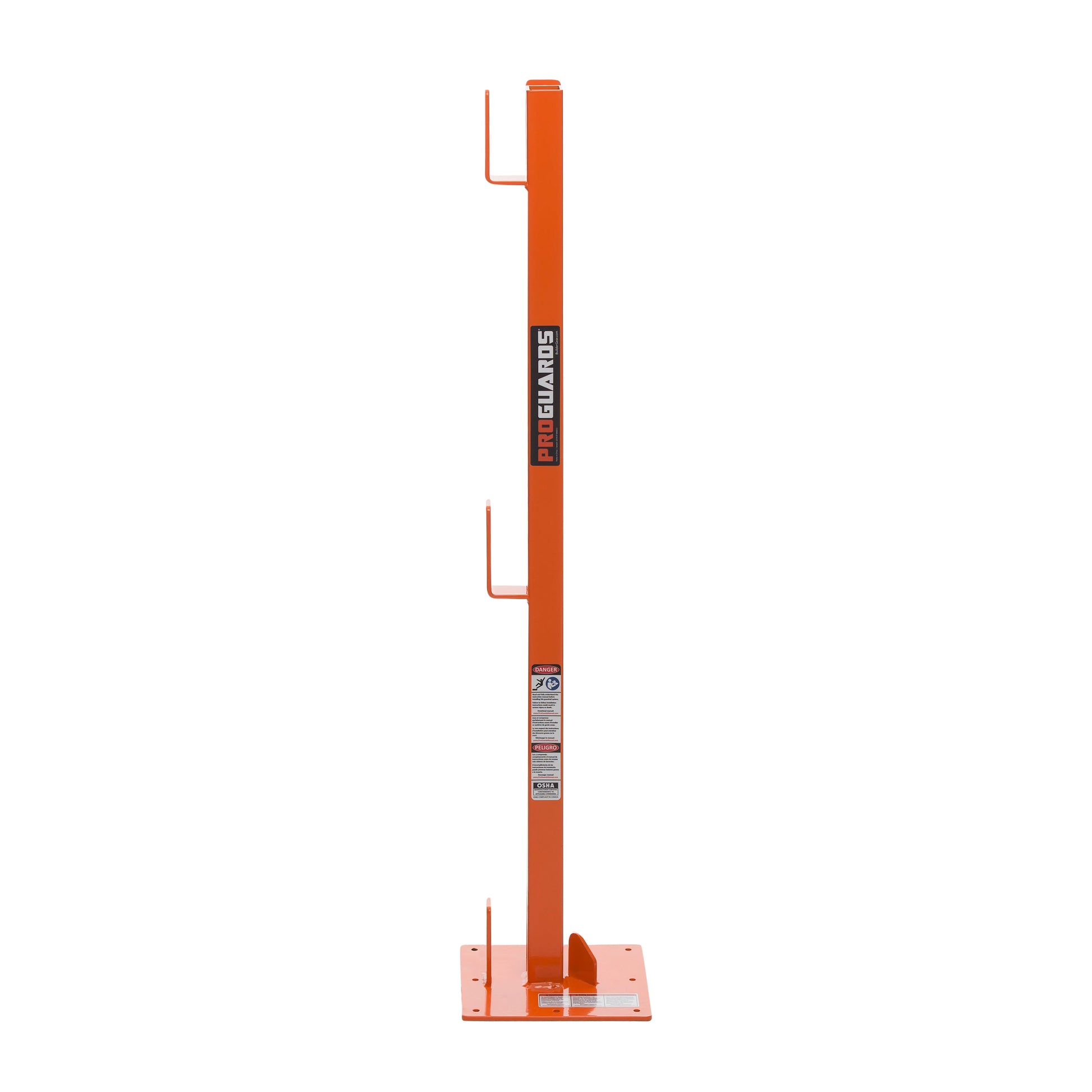

• Guide fin to connect two posts for storage/transport
• Pull out strength complies with applicable OSHA (USA) and OH&S Act (Canada) requirements

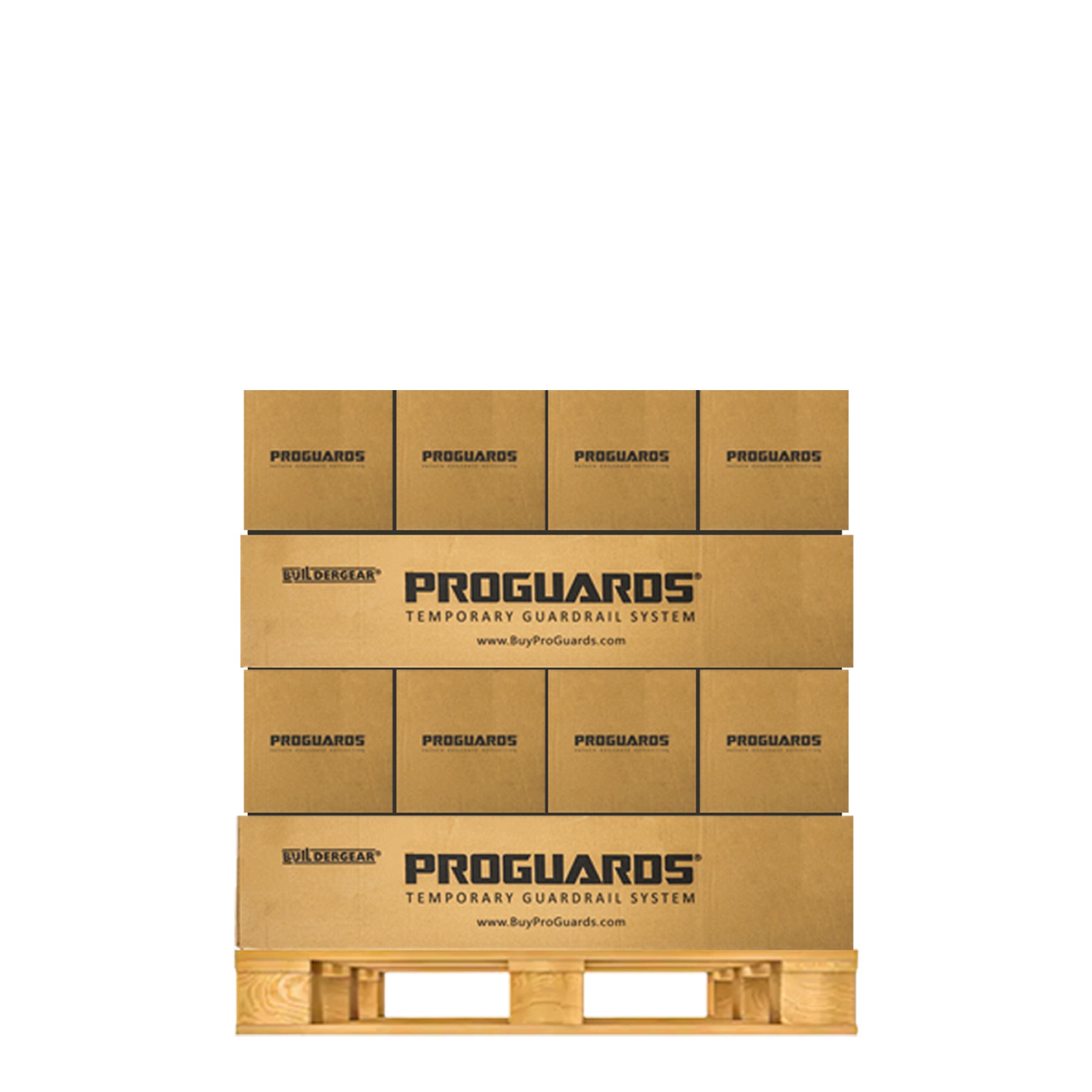

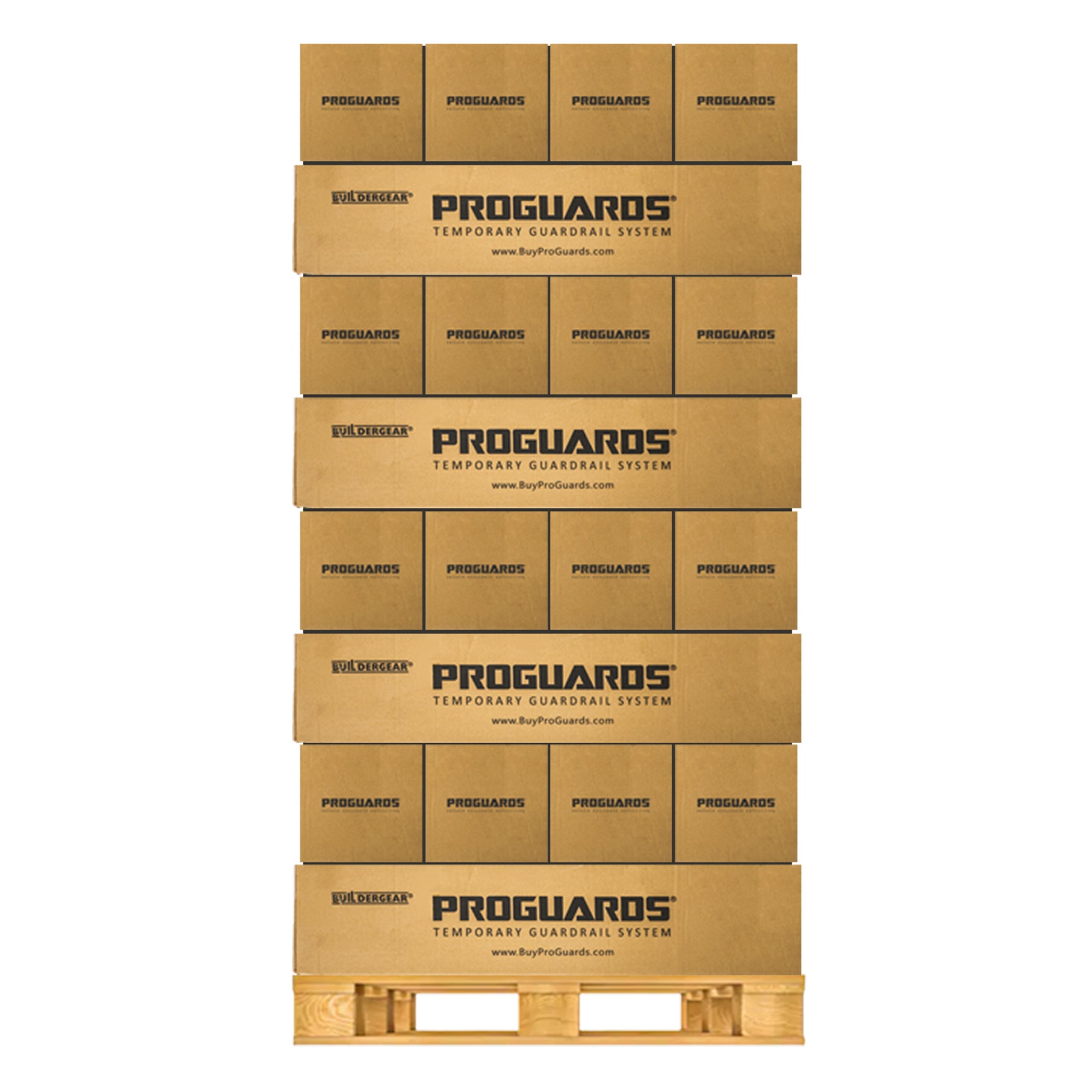

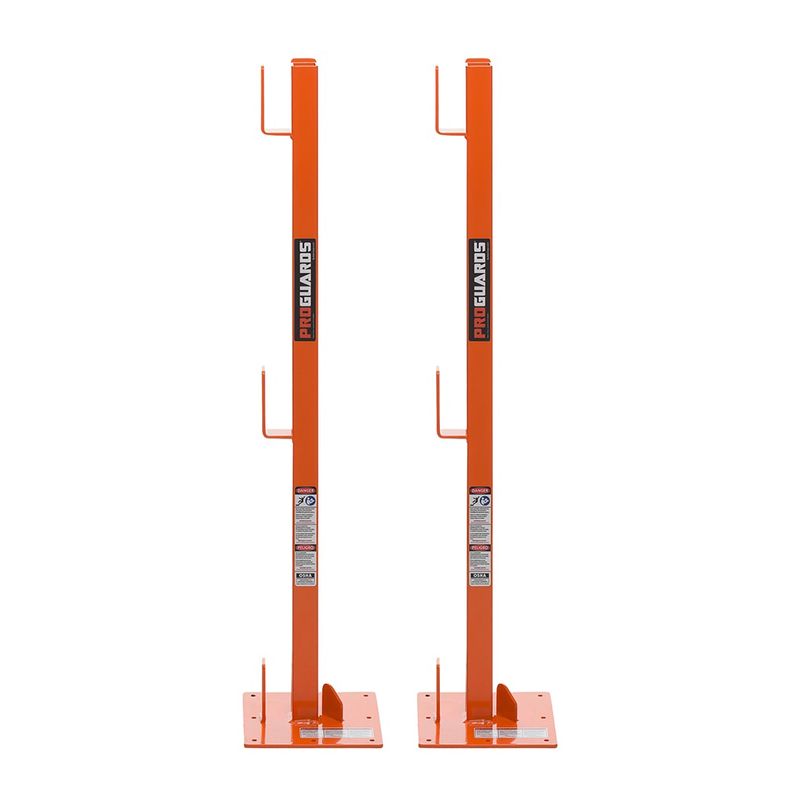

PACKAGE QUANTITY: 2

APPROVALS OR CERTIFICATIONS: OSHA, OH&S Act

STYLE: Temporary Guardrail

WEIGHT LBS: 13-1/4

HEIGHT INCHES: 39-1/4

LENGTH INCHES: 8

MANUFACTURERS PART NUMBER: 70-8010

BRAND: BuilderGear

WIDTH INCHES: 8

COUNTRY OF ORIGIN: Made in Canada

CONSTRUCTION: Powder Coated Steel

HOOK DEPTH INCHES: 1-1/2

HOOK HEIGHT INCHES: 3-1/2
